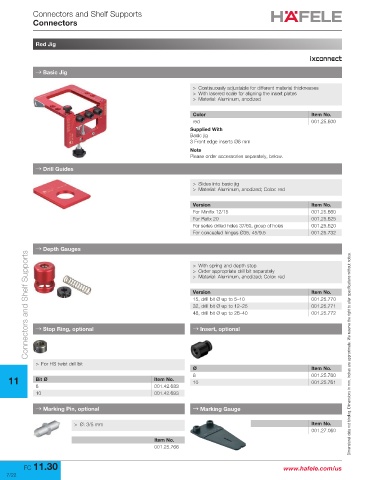

Connectors and Shelf Supports
Connectors

Red Jig

→ Basic Jig

> Continuously adjustable for different material thicknesses
> With lasered scale for aligning the insert plates
> Material: Aluminum, anodized

Color Item No.
red 001.25.600
Supplied With
Basic jig
3 Front edge inserts Ø8 mm
Note
Please order accessories separately, below.

→ Drill Guides

> Slides into basic jig
> Material: Aluminum, anodized; Color: red

Version Item No.
For Minifix 12/15 001.25.660
For Rafix 20 001.25.625
For series drilled holes 37/60, group of holes 001.25.620
For concealed hinges Ø35, 45/9.5 001.25.732

→ Depth Gauges
Connectors and Shelf Supports

> With spring and depth stop
> Order appropriate drill bit separately
> Material: Aluminum, anodized; Color: red

Version Item No.
15, drill bit Ø up to 5–10 001.25.770
32, drill bit Ø up to 12–25 001.25.771
48, drill bit Ø up to 26–40 001.25.772

→ Stop Ring, optional → Insert, optional

> For HS twist drill bit Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø Item No.
11 Bit Ø Item No. 8 10 001.25.760
001.25.761
8 001.42.683
10 001.42.693

→ Marking Pin, optional → Marking Gauge

> Ø: 3/5 mm Item No.
001.27.060
Item No.
001.25.766

FC 11.30 www.hafele.com/us
7/22
