Connectors and Shelf Supports
Connectors

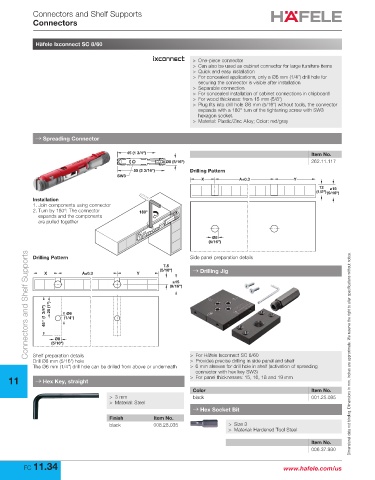

Häfele Ixconnect SC 8/60

> One-piece connector
> Can also be used as cabinet connector for large furniture items
> Quick and easy installation
> For concealed applications, only a Ø6 mm (1/4") drill hole for
securing the connector is visible after installation
> Separable connection
> For concealed installation of cabinet connections in chipboard
> For wood thickness: from 15 mm (5/8")
> Plug fits into drill hole Ø8 mm (5/16") without tools, the connector
expands with a 180° turn of the tightening screw with SW3
hexagon socket.
> Material: Plastic/Zinc Alloy; Color: red/gray

→ Spreading Connector

45 (1 3/4") Item No.
Ø8 (5/16") 262.11.117
55 (2 3/16") Drilling Pattern
SW3
X A±0.3 Y
12 ≥15
(1/2") (9/16")
Installation
1. Join components using connector
2. Turn by 180°: The connector
expands and the components
are pulled together

Ø8
(5/16")
Connectors and Shelf Supports
Drilling Pattern Side panel preparation details
7.5
(5/16") → Drilling Jig
X A±0.3 Y
≥15
(9/16")

45 +1 (1 3/4") 25 (1") (1/4")
Ø6

Ø8
(5/16")
Shelf preparation details > For Häfele Ixconnect SC 8/60 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Drill Ø8 mm (5/16") hole > Provides precise drilling in side panel and shelf
The Ø6 mm (1/4") drill hole can be drilled from above or underneath > 6 mm sleeves for drill hole in shelf (activation of spreading
connector with hex key SW3)
11 → Hex Key, straight > For panel thicknesses: 15, 16, 18 and 19 mm
11
Color Item No.
> 3 mm black 001.25.085
> Material: Steel
→ Hex Socket Bit
Finish Item No.
black 008.28.035 > Size 3
> Material: Hardened Tool Steel

Item No.
006.37.930

FC 11.34 www.hafele.com/us
