Connectors and Shelf Supports
Connectors

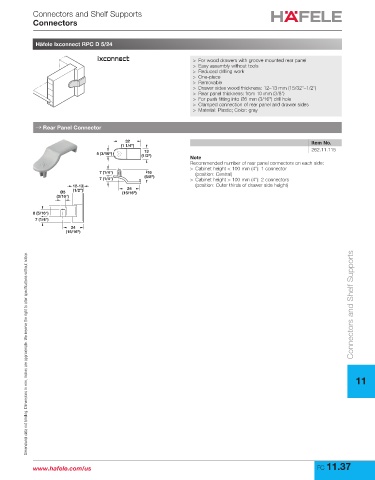

Häfele Ixconnect RPC D 5/24
> For wood drawers with groove mounted rear panel
> Easy assembly without tools
> Reduced drilling work
> One-piece
> Removable
> Drawer sides wood thickness: 12–13 mm (15/32"–1/2")
> Rear panel thickness: from 10 mm (3/8")
> For push fitting into Ø5 mm (3/16") drill hole
> Clamped connection of rear panel and drawer sides
> Material: Plastic; Color: gray
→ Rear Panel Connector
32 Item No.
(1 1/4") 262.11.115
13
5 (3/16") (1/2") Note
Recommended number of rear panel connectors on each side:
> Cabinet height < 100 mm (4"): 1 connector
7 (1/4") 16 (position: Central)
7 (1/4") (5/8") > Cabinet height > 100 mm (4"): 2 connectors
12-13 24 (position: Outer thirds of drawer side height)
Ø5 (1/2") (15/16")
(3/16")
8 (5/16")
7 (1/4")
24
(15/16") Connectors and Shelf Supports
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
