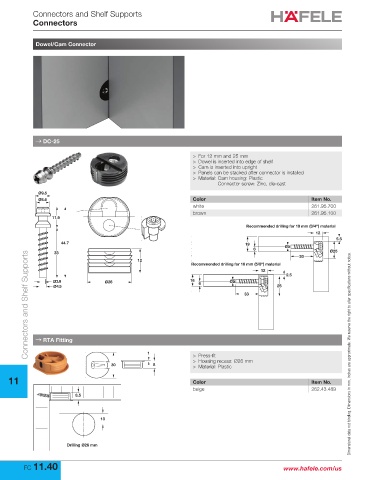

P. 1204
Connectors and Shelf Supports
Connectors
Dowel/Cam Connector
→ DC-25
> For 12 mm and 25 mm
> Dowel is inserted into edge of shelf
> Cam is inserted into upright
> Panels can be stacked after connector is installed
> Material: Cam housing: Plastic
Connector screw: Zinc, die-cast
Ø9.5
Ø8.6 Color Item No.
white 261.95.700
brown 261.95.100
11.6
Recommended drilling for 19 mm (3/4") material
12
5.5
44.7 19 Ø5
6
33 Ø25
Connectors and Shelf Supports
33
12
Recommended drilling for 16 mm (5/8") material
12
2.5
Ø3.9 Ø26 16 6 Ø5
Ø4.5 25
33
→ RTA Fitting
1 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Press-fit
> Housing recess: Ø26 mm
30 8 > Material: Plastic
11 Color Item No.
beige 262.43.489
8.5
13
Drilling Ø26 mm
FC 11.40 www.hafele.com/us
