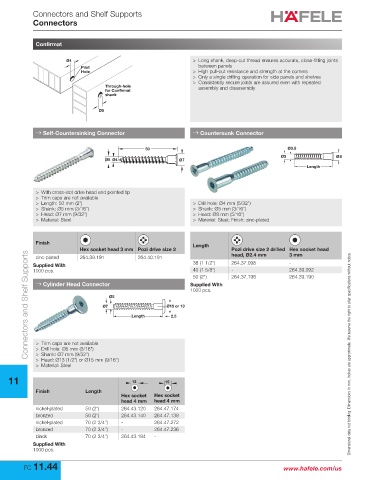

Connectors and Shelf Supports
Connectors

Confirmat

Ø4 > Long shank, deep-cut thread ensures accurate, close-fitting joints
Pilot between panels
Hole > High pull-out resistance and strength at the corners
> Only a single drilling operation for side panels and shelves
> Consistently secure joints are assured even with repeated
Through-hole assembly and disassembly
for Confirmat
shank

Ø5

→ → Countersunk Connector
→ 1/4" Crown, 1 1/2" Medium-Heavy WireSelf-Countersinking Connector

50 Ø3.5
Ø5 Ø 8
Ø5 Ø4 Ø7
Length

> With cross-slot drive head and pointed tip
> Trim caps are not available
> Length: 50 mm (2") > Drill hole: Ø4 mm (5/32")
> Shank: Ø5 mm (3/16") > Shank: Ø5 mm (3/16")
> Head: Ø7 mm (9/32") > Head: Ø8 mm (5/16")
> Material: Steel > Material: Steel; Finish: zinc-plated

Finish Length
Hex socket head 3 mm Pozi drive size 2 Pozi drive size 2 drilled Hex socket head
Connectors and Shelf Supports
head, Ø2.4 mm 3 mm
zinc-plated 264.39.191 264.40.191
Supplied With 38 (1 1/2") 264.37.098 -
1000 pcs. 40 (1 5/8") - 264.39.092
50 (2") 264.37.196 264.39.190
→ Cylinder Head Connector Supplied With
1000 pcs.
Ø5
Ø7 Ø15 or 13
Length 2.5

> Trim caps are not available
> Drill hole: Ø5 mm (3/16")
> Shank: Ø7 mm (9/32") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Head: Ø13 (1/2") or Ø15 mm (9/16")
> Material: Steel
11 13 15

Finish Length
Hex socket Hex socket
head 4 mm head 4 mm
nickel-plated 50 (2") 264.43.120 264.47.174
bronzed 50 (2") 264.43.140 264.47.138
nickel-plated 70 (2 3/4") - 264.47.272
bronzed 70 (2 3/4") - 264.47.236
black 70 (2 3/4") 264.43.184 -
Supplied With
1000 pcs.

FC 11.44 www.hafele.com/us
