Connectors and Shelf Supports
Connectors

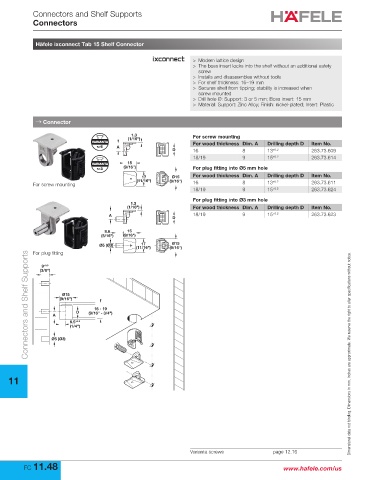

Häfele ixconnect Tab 15 Shelf Connector

> Modern lattice design
> The boss insert locks into the shelf without an additional safety
screw
> Installs and disassembles without tools
> For shelf thickness: 16–19 mm
> Secures shelf from tipping; stability is increased when
screw mounted
> Drill hole Ø: Support: 3 or 5 mm; Boss insert: 15 mm
> Material: Support: Zinc Alloy; Finish: nickel-plated; Insert: Plastic

→ Connector

1.3 For screw mounting
(1/16")
VARIANTA For wood thickness Dim. A Drilling depth D Item No.
5 A
D 16 8 13 +0.2 263.73.609
18/19 9 15 +0.2 263.73.614
VARIANTA 15
3 (9/16") For plug fitting into Ø5 mm hole
17 Ø15 For wood thickness Dim. A Drilling depth D Item No.
(11/16") (9/16") +0.2
For screw mounting 16 8 13 263.73.611
18/19 9 15 +0.2 263.73.624
For plug fitting into Ø3 mm hole
1.3
(1/16") For wood thickness Dim. A Drilling depth D Item No.
A D 18/19 9 15 +0.2 263.73.623

8.6 15
(5/16") (9/16")
Ø5 (Ø3) 17 Ø15
(11/16") (9/16")
For plug fitting
Connectors and Shelf Supports
9 +0.5
(3/8")

Ø15
(9/16")
16 - 19
D (9/16" - 3/4")
A
6.5 +0.5
(1/4")

Ø5 (Ø3) Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

11

Varianta screws page 12.16
