Connectors and Shelf Supports
Connectors

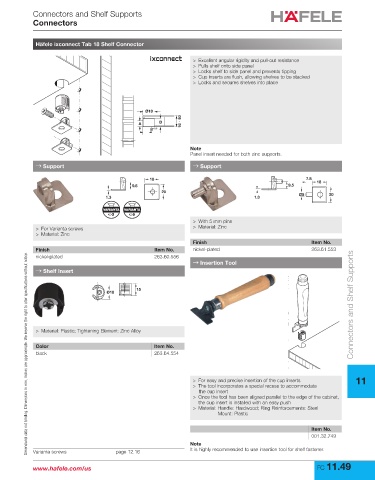

Häfele ixconnect Tab 18 Shelf Connector

> Excellent angular rigidity and pull-out resistance
> Pulls shelf onto side panel
> Locks shelf to side panel and prevents tipping
> Cup inserts are flush, allowing shelves to be stacked
> Locks and secures shelves into place

Ø18
16 - 50
D
A

Note
Panel insert needed for both zinc supports.
→ Support → Support

18 7.8 18
9.5 9.5
20 20
1.3 1.3 Ø5
VARIANTA VARIANTA
3 5
> With 5 mm pins
> For Varianta screws > Material: Zinc
> Material: Zinc
Finish Item No.
Finish Item No. nickel-plated 263.61.553
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
nickel-plated 263.60.556
→ Insertion Tool
→ Shelf Insert

15
Ø18 Connectors and Shelf Supports

> Material: Plastic; Tightening Element: Zinc Alloy

Color Item No.
black 263.64.554

> For easy and precise insertion of the cup inserts 11
> The tool incorporates a special recess to accommodate
the cup insert
> Once the tool has been aligned parallel to the edge of the cabinet,
the cup insert is installed with an easy push
> Material: Handle: Hardwood; Ring Reinforcements: Steel
Mount: Plastic

Item No.
001.32.749
Note
Varianta screws page 12.16 It is highly recommended to use insertion tool for shelf fastener.

www.hafele.com/us FC 11.49
