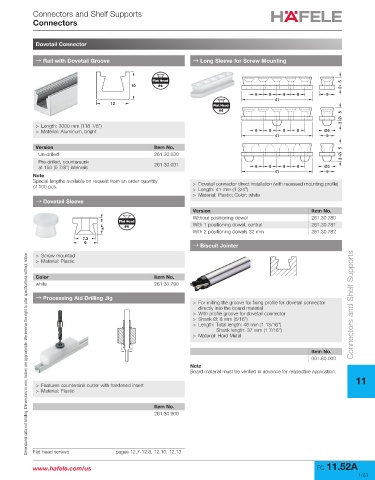

Connectors and Shelf Supports
Connectors

Dovetail Connector

→ Rail with Dovetail Groove → Long Sleeve for Screw Mounting

Flat Head
10 #4

12
Flat Head
#4
> Length: 3000 mm (118 1/8")
> Material: Aluminum, bright

Version Item No.
Un-drilled 261.30.030
Pre-drilled, countersunk
at 150 (5 7/8") intervals 261.30.031
Note
Special lengths available on request from an order quantity
of 100 pcs. > Dovetail connector direct installation (with recessed mounting profile)
> Length: 41 mm (1 3/4”)
> Material: Plastic; Color: white
→ Dovetail Sleeve
Version Item No.
Without positioning dowel 261.30.780
2 Flat Head
#4 With 1 positioning dowel, central 261.30.781
4
With 2 positioning dowels 32 mm 261.30.782
7.3
9
→ Biscuit Jointer
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Screw mounted
> Material: Plastic
Color Item No.
white 261.30.790

→ Processing Aid Drilling Jig
> For milling the groove for fixing profile for dovetail connector
directly into the board material Connectors and Shelf Supports
> With profile groove for dovetail connector
> Shank Ø: 8 mm (5/16")
> Length: Total length: 46 mm (1 13/16")
Shank length: 37 mm (1 7/16")
> Material: Hard Metal

Item No.
001.60.000
Note
Board material must be verified in advance for respective application.
11
> Features countersink cutter with hardened insert
> Material: Plastic

Item No.
261.30.900

Flat head screws pages 12.7-12.8, 12.10, 12.13
