P. 1220

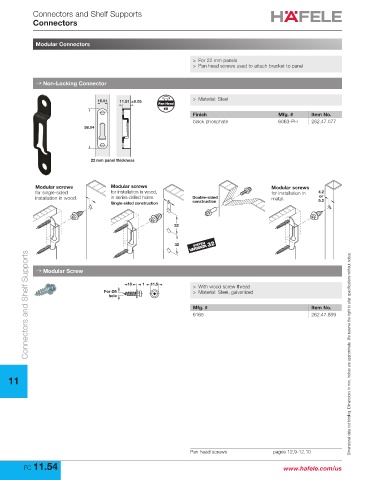

Connectors and Shelf Supports
Connectors
Modular Connectors
> For 22 mm panels
> Pan head screws used to attach bracket to panel
→ Non-Locking Connector
16.51 11.51 ±0.05 > Material: Steel
Pan Head
#8
Finish Mfg. # Item No.
black phosphate 6063-PH 262.47.077
58.04
22 mm panel thickness
Modular screws Modular screws Modular screws
for single-sided for installation in wood, for installation in 4.2
or
installation in wood. in series-drilled holes. Double-sided metal. 5.2
Single-sided construction 5 construction
32
32
Connectors and Shelf Supports
→ Modular Screw
16 1 11.5 > With wood screw thread
For Ø5 > Material: Steel, galvanized
hole
Mfg. # Item No.
6165 262.47.889
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pan head screws pages 12.9-12.10
