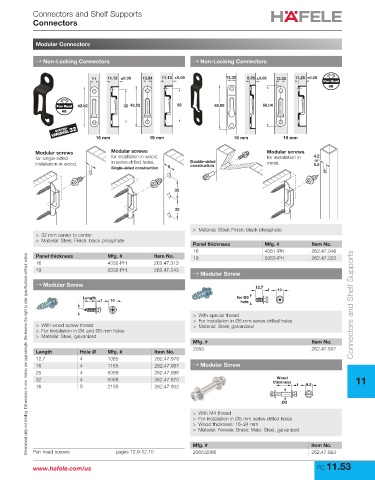

Connectors and Shelf Supports
Connectors

Modular Connectors

→ Non-Locking Connectors → Non-Locking Connectors

11 11.13 ±0.05 13.34 11.13 ±0.05 12.32 8.26 ±0.05 13.33 11.28 ±0.05
Pan Head
#8

Pan Head 42.52 32 42.52 32 62.69 58.04
#8

16 mm 19 mm 16 mm 19 mm
Modular screws Modular screws Modular screws
for single-sided for installation in wood, for installation in 4.2
or
installation in wood. in series-drilled holes. Double-sided metal. 5.2
construction
Single-sided construction 5
32

32

> Material: Steel; Finish: black phosphate
> 32 mm center to center
> Material: Steel; Finish: black phosphate
Panel thickness Mfg. # Item No.
16 4061-PH 262.47.048
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Panel thickness Mfg. # Item No. 19 5063-PH 262.47.022
16 4032-PH 262.47.313
19 5032-PH 262.47.343
→ Modular Screw
→ Modular Screw
12.7
1 10
Length for Ø5
1 10 hole Connectors and Shelf Supports

> With special thread
> For installation in Ø5 mm series-drilled holes
> With wood screw thread > Material: Steel, galvanized
> For installation in Ø4 and Ø5 mm holes
> Material: Steel, galvanized
Mfg. # Item No.
2055 262.47.807
Length Hole Ø Mfg. # Item No.
12.7 4 1065 262.47.978
16 4 1165 262.47.987 → Modular Screw
25 4 5069 262.47.996
Wood
32 4 5068 262.47.870 thickness 11
16 5 2155 262.47.902 1 9.5

Ø5
> With M4 thread
> For installation in Ø5 mm series-drilled holes
> Wood thickness: 16–24 mm
> Material: Female: Brass; Male: Steel, galvanized

Mfg. # Item No.
Pan head screws pages 12.9-12.10 2065/2066 262.47.923

www.hafele.com/us FC 11.53
