Connectors and Shelf Supports
Connectors

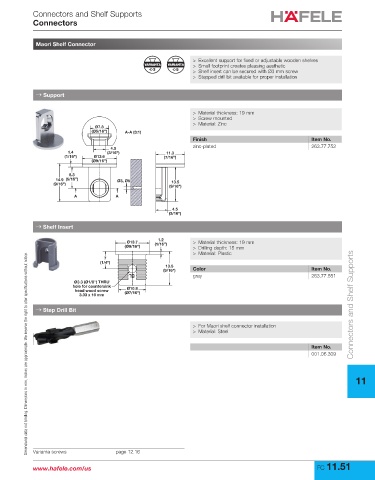

Maori Shelf Connector

> Excellent support for fixed or adjustable wooden shelves
VARIANTA VARIANTA > Small footprint creates pleasing aesthetic
3 5 > Shelf insert can be secured with Ø3 mm screw
> Stepped drill bit available for proper installation

→ Support

> Material thickness: 19 mm
> Screw mounted
> Material: Zinc
Ø7.3
(Ø5/16") A-A (3:1)
Finish Item No.
zinc-plated 263.77.752
4.5
1.4 (3/16") 11.3
(1/16") Ø13.6 (7/16")
(Ø9/16")
8.3
14.9 (5/16") Ø3, Ø5
(9/16") 13.5
(9/16")
A A
4.5
(3/16")

→ Shelf Insert
1.2
Ø13.7 (1/16") > Material thickness: 19 mm
(Ø9/16") > Drilling depth: 15 mm
> Material: Plastic
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
7
(1/4")
13.5
(9/16") Color Item No.
gray 263.77.551
Ø3.3 (Ø1/8") THRU
hole for countersink
head wood screw Ø10.8
3.33 x 16 mm (Ø7/16")
→ Step Drill Bit Connectors and Shelf Supports

> For Maori shelf connector installation
> Material: Steel

Item No.
001.06.309

11

Varianta screws page 12.16
