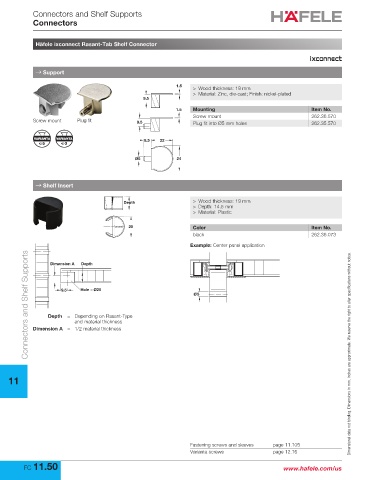

Connectors and Shelf Supports
Connectors
Häfele ixconnect Rasant-Tab Shelf Connector
→ Support
1.5
> Wood thickness: 19 mm
> Material: Zinc, die-cast; Finish: nickel-plated
9.5
1.5 Mounting Item No.
Screw mount 262.36.570
Screw mount Plug fit 9.5 Plug fit into Ø5 mm holes 262.35.570
VARIANTA VARIANTA 8.5 22
5 3
Ø5 24
→ Shelf Insert
Depth > Wood thickness: 19 mm
> Depth: 14.5 mm
> Material: Plastic
20 Color Item No.
black 262.36.073
Example: Center panel application
Connectors and Shelf Supports
Dimension A Depth
9.5 Hole – Ø20
Ø5
Depth = Depending on Rasant-Type
and material thickness
Dimension A = 1/2 material thickness
11
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Fastening screws and sleeves page 11.105
Varianta screws page 12.16
FC 11.50 www.hafele.com/us
