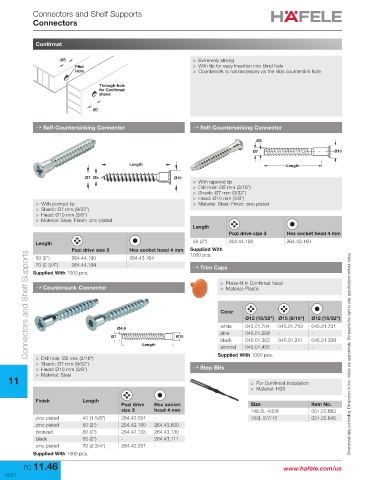

Connectors and Shelf Supports
Connectors

Confirmat

Ø5 > Extremely strong
Pilot > With tip for easy insertion into blind hole
Hole > Countersink is not necessary as the nibs countersink hole

Through-hole
for Confirmat
shank

Ø7

→ Self-Countersinking Connector → Self-Countersinking Connector

Ø5
Ø7 Ø10

Length Length

Ø7 Ø5 Ø10
> With tapered tip
> Drill hole: Ø5 mm (3/16")
> Shank: Ø7 mm (9/32")
> Head: Ø10 mm (3/8")
> With pointed tip > Material: Steel; Finish: zinc-plated
> Shank: Ø7 mm (9/32")
> Head: Ø10 mm (3/8")
> Material: Steel; Finish: zinc-plated
Length
Pozi drive size 3 Hex socket head 4 mm
Length 50 (2") 264.44.180 264.43.160
Pozi drive size 3 Hex socket head 4 mm Supplied With
Connectors and Shelf Supports
1000 pcs.
50 (2") 264.44.190 264.43.164
70 (2 3/4") 264.44.194 - → Trim Caps
Supplied With 1000 pcs.
> Press-fit in Confirmat head
→ Countersunk Connector > Material: Plastic

Color
Ø12 (15/32") Ø15 (9/16") Ø12 (15/32")
Ø4.9 white 045.01.704 045.01.713 045.01.731
pine 045.01.008 - -
Ø7 Ø10
black 045.01.302 045.01.311 045.01.339
Length
almond 045.01.455 - -
Supplied With 1000 pcs. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Drill hole: Ø5 mm (3/16")
> Shank: Ø7 mm (9/32")
> Head: Ø10 mm (3/8") → Step Bits
> Material: Steel
11 > For Confirmat installation
> Material: HSS
Finish Length
Pozi drive Hex socket Size Item No.
size 3 head 4 mm 148.5L 4/5/8 001.22.663
zinc-plated 40 (1 5/8") 264.42.091 - 150L 5/7/10 001.22.645
zinc-plated 50 (2") 264.42.190 264.43.600
bronzed 50 (2") 264.42.133 264.43.130
black 50 (2") - 264.43.111
zinc-plated 70 (2 3/4") 264.42.291 -
Supplied With 1000 pcs.
FC 11.46 www.hafele.com/us
