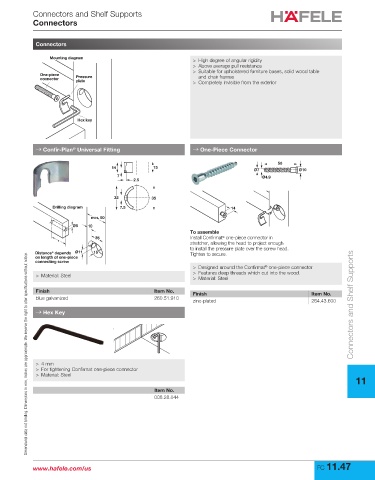

Connectors and Shelf Supports
Connectors

Connectors

Mounting diagram > High degree of angular rigidity
> Above average pull resistance
> Suitable for upholstered furniture bases, solid wood table
One-piece Pressure and chair frames
connector plate > Completely invisible from the exterior

Hex key

→ Confir-Plan Universal Fitting → One-Piece Connector
®
50
14 15 Ø7 Ø10
7 Ø4.9
2.5

32 35
Drilling diagram 7.5 14
min. 50
Ø5 10
To assemble
®
35 Install Confirmat one-piece connector in
* stretcher, allowing the head to project enough
to install the pressure plate over the screw head.
Distance* depends Ø11 15 Tighten to secure.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
on length of one-piece
connecting screw
> Designed around the Confirmat one-piece connector
®
> Material: Steel > Features deep threads which cut into the wood.
> Material: Steel
Finish Item No. Finish Item No.
blue galvanized 260.51.910
zinc-plated 264.43.600 Connectors and Shelf Supports
→ Hex Key

> 4 mm
> For tightening Confirmat one-piece connector
> Material: Steel
11
Item No.
008.28.044

www.hafele.com/us FC 11.47
