Connectors and Shelf Supports
Connectors

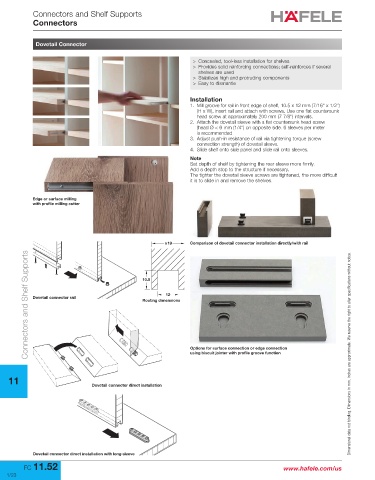

Dovetail Connector

> Concealed, tool-less installation for shelves
> Provides solid reinforcing connections; self-reinforces if several
shelves are used
> Stabilizes high and protruding components
> Easy to dismantle

Installation
1. Mill groove for rail in front edge of shelf, 10.5 x 12 mm (7/16" x 1/2")
(H x W), insert rail and attach with screws. Use one flat countersunk
head screw at approximately 200 mm (7 7/8") intervals.
2. Attach the dovetail sleeve with a flat countersunk head screw
(head Ø < 6 mm (1/4") on opposite side. 6 sleeves per meter
is recommended
3. Adjust push-in resistance of rail via tightening torque (screw
connection strength) of dovetail sleeve.
4. Slide shelf onto side panel and slide rail onto sleeves.
Note
Set depth of shelf by tightening the rear sleeve more firmly.
Add a depth stop to the structure if necessary.
The tighter the dovetail sleeve screws are tightened, the more difficult
it is to slide in and remove the shelves.

Edge or surface milling
with profile milling cutter

19 Comparison of dovetail connector installation directly/with rail
Connectors and Shelf Supports

10.5

12
Dovetail connector rail
Routing dimensions

Options for surface connection or edge connection
using biscuit jointer with profile groove function Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

11
Dovetail connector direct installation

Dovetail connector direct installation with long sleeve
