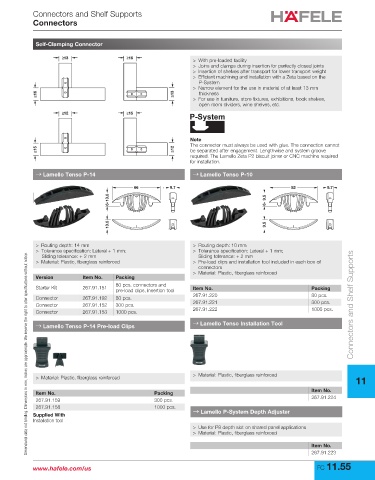

Connectors and Shelf Supports
Connectors

Self-Clamping Connector

13 16 > With pre-loaded facility
> Joins and clamps during insertion for perfectly closed joints
> Insertion of shelves after transport for lower transport weight
> Efficient machining and installation with a Zeta based on the
P-System
> Narrow element for the use in material of at least 13 mm
16 13 thickness
> For use in furniture, store fixtures, exhibitions, book shelves,
open room dividers, wine shelves, etc.
12 15

Note
The connector must always be used with glue. The connection cannot
15 12 be separated after engagement. Lengthwise and system groove
required. The Lamello Zeta P2 biscuit joiner or CNC machine required
for installation.

→ Lamello Tenso P-14 → Lamello Tenso P-10

66 9.7 52 9.7
13.5 9.5
6 6

13.5 9.5

> Routing depth: 14 mm > Routing depth: 10 mm
> Tolerance specification: Lateral + 1 mm; > Tolerance specification: Lateral + 1 mm;
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Sliding tolerance: + 2 mm Sliding tolerance: + 2 mm
> Material: Plastic, fiberglass reinforced > Pre-load clips and installation tool included in each box of
connectors
> Material: Plastic, fiberglass reinforced
Version Item No. Packing
80 pcs. connectors and
Starter Kit 267.91.151 Item No. Packing
pre-load clips, insertion tool
267.91.220 80 pcs.
Connector 267.91.192 80 pcs.
Connector 267.91.152 300 pcs. 267.91.221 300 pcs. Connectors and Shelf Supports
Connector 267.91.153 1000 pcs. 267.91.222 1000 pcs.
→ Lamello Tenso P-14 Pre-load Clips → Lamello Tenso Installation Tool

> Material: Plastic, fiberglass reinforced
> Material: Plastic, fiberglass reinforced 11

Item No. Packing Item No.
267.91.159 300 pcs. 267.91.224
267.91.158 1000 pcs.
Supplied With → Lamello P-System Depth Adjuster
Installation tool
> Use for P8 depth slot on shared panel applications
> Material: Plastic, fiberglass reinforced
Item No.
267.91.223

www.hafele.com/us FC 11.55
