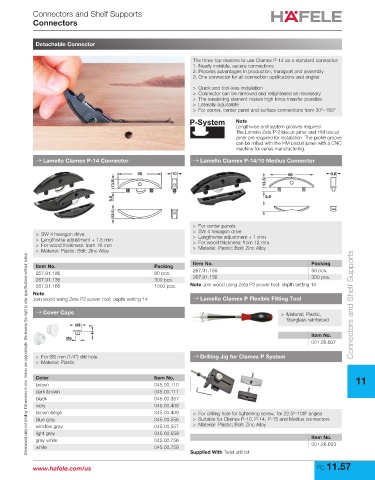

Connectors and Shelf Supports
Connectors

Detachable Connector

The three top reasons to use Clamex P-14 as a standard connector:
1. Nearly invisible, secure connections
2. Process advantages in production, transport and assembly
3. One connector for all connection applications and angles
> Quick and tool-less installation
> Connector can be removed and retightened as necessary
> The tensioning element makes high force transfer possible
> Laterally adjustable
> For corner, center panel and surface connections from 30°–180°
Note
Lengthwise and system grooves required.
The Lamello Zeta P-2 biscuit joiner and HM biscuit
joiner are required for installation. The profile groove
can be milled with the HM biscuit joiner with a CNC
machine for series manufacturing.
→ Lamello Clamex P-14 Connector → Lamello Clamex P-14/10 Medius Connector

66 10 66 9.8
13.5 13.5

5.5 5.5

13.5 7.5 52
> For center panels
> SW 4 hexagon drive
> SW 4 hexagon drive > Lengthwise adjustment + 1 mm
> Lengthwise adjustment + 1.5 mm > For wood thickness: from 12 mm
> For wood thickness: from 16 mm > Material: Plastic; Bolt: Zinc Alloy
> Material: Plastic; Bolt: Zinc Alloy
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Item No. Packing Item No. Packing
267.91.186 80 pcs. 267.91.188 80 pcs.
267.91.136 300 pcs. 267.91.138 300 pcs.
267.91.166 1000 pcs. Note Join wood using Zeta P2 power tool: depth setting 14
Note
Join wood using Zeta P2 power tool: depth setting 14 → Lamello Clamex P Flexible Fitting Tool Connectors and Shelf Supports

→ Cover Caps > Material: Plastic,
fiberglass reinforced

Item No.
001.26.607

> For Ø6 mm (1/4") drill hole → Drilling Jig for Clamex P System
> Material: Plastic

Color Item No. 11
brown 045.00.110
dark brown 045.00.111
black 045.00.357
ivory 045.00.408
brown beige 045.00.409 > For drilling hole for tightening screw, for 22.5º–108º angles
blue gray 045.00.556 > Suitable for Clamex P-10, P-14, P-15 and Medius connectors
window gray 045.00.557 > Material: Plastic; Bolt: Zinc Alloy
light gray 045.00.558
gray white 045.00.756 Item No.
white 045.00.759 001.26.603
Supplied With Twist drill bit

www.hafele.com/us FC 11.57
