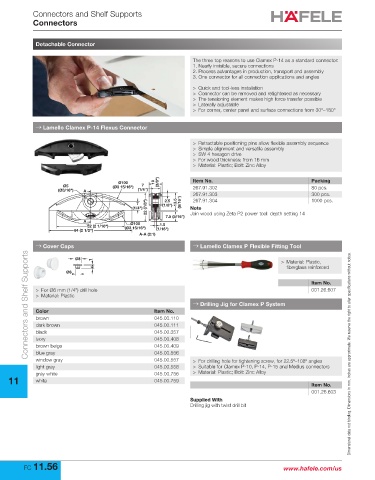

Connectors and Shelf Supports
Connectors

Detachable Connector

The three top reasons to use Clamex P-14 as a standard connector:
1. Nearly invisible, secure connections
2. Process advantages in production, transport and assembly
3. One connector for all connection applications and angles
> Quick and tool-less installation
> Connector can be removed and retightened as necessary
> The tensioning element makes high force transfer possible
> Laterally adjustable
> For corner, center panel and surface connections from 30°–180°

→ Lamello Clamex P-14 Flexus Connector

> Retractable positioning pins allow flexible assembly sequence
> Simple alignment and versatile assembly
> SW 4 hexagon drive
> For wood thickness: from 16 mm
> Material: Plastic; Bolt: Zinc Alloy

Ø100 10 (3/8") Item No. Packing
Ø5 (Ø3 15/16") 7 267.91.302 80 pcs.
(Ø3/16") A (1/4")
267.91.303 300 pcs.
2.5
7 (1/8") 13.5 (9/16") 267.91.304 1000 pcs.
(1/4") 22 (7/8") Note
7.5 (5/16") Join wood using Zeta P2 power tool: depth setting 14
A Ø100
52 (2 1/16") (Ø3 15/16") 1.5
64 (2 1/2") (1/16")
A-A (2:1)
→ Cover Caps → Lamello Clamex P Flexible Fitting Tool
Connectors and Shelf Supports
> Material: Plastic,
fiberglass reinforced

Item No.
> For Ø6 mm (1/4") drill hole 001.26.607
> Material: Plastic
→ Drilling Jig for Clamex P System
Color Item No.
brown 045.00.110
dark brown 045.00.111
black 045.00.357
ivory 045.00.408
brown beige 045.00.409
blue gray 045.00.556 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
window gray 045.00.557 > For drilling hole for tightening screw, for 22.5º–108º angles
light gray 045.00.558 > Suitable for Clamex P-10, P-14, P-15 and Medius connectors
gray white 045.00.756 > Material: Plastic; Bolt: Zinc Alloy
11 white 045.00.759 Item No.
001.26.603
Supplied With
Drilling jig with twist drill bit
