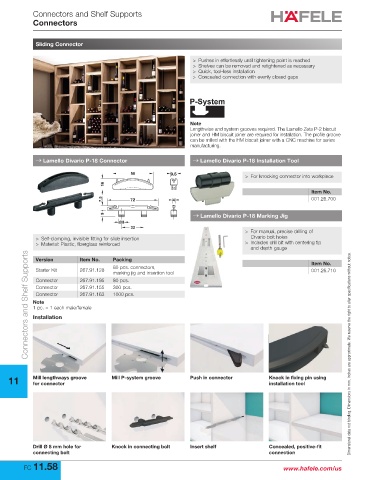

Connectors and Shelf Supports
Connectors

Sliding Connector

> Pushes in effortlessly until tightening point is reached
> Shelves can be removed and retightened as necessary
> Quick, tool-less installation
> Concealed connection with evenly closed gaps

Note
Lengthwise and system grooves required. The Lamello Zeta P-2 biscuit
joiner and HM biscuit joiner are required for installation. The profile groove
can be milled with the HM biscuit joiner with a CNC machine for series
manufacturing.

→ Lamello Divario P-18 Connector → Lamello Divario P-18 Installation Tool

9.5 > For knocking connector into workpiece

Item No.
72 001.26.700

→ Lamello Divario P-18 Marking Jig

> For manual, precise drilling of
> Self-clamping, invisible fitting for slide insertion Divario bolt holes
> Material: Plastic, fiberglass reinforced > Includes drill bit with centering tip
and depth gauge
Connectors and Shelf Supports
Version Item No. Packing Item No.
Starter Kit 267.91.128 80 pcs. connectors, 001.26.710
marking jig and insertion tool
Connector 267.91.195 80 pcs.
Connector 267.91.155 300 pcs.
Connector 267.91.163 1000 pcs.
Note
1 pc. = 1 each male/female
Installation

11 Mill lengthways groove Mill P-system groove Push in connector Knock in fixing pin using Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
installation tool
for connector

Drill Ø 8 mm hole for Knock in connecting bolt Insert shelf Concealed, positive-fit
connecting bolt connection
