Connectors and Shelf Supports
Connectors

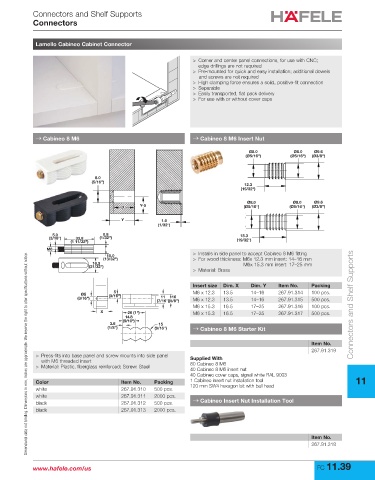

Lamello Cabineo Cabinet Connector

> Corner and center panel connections, for use with CNC;
edge drillings are not required
> Pre-mounted for quick and easy installation; additional dowels
and screws are not required
> High clamping force ensures a solid, positive-fit connection
> Separable
> Easily transported, flat pack delivery
> For use with or without cover caps

→ Cabineo 8 M6 → Cabineo 8 M6 Insert Nut
Ø8.0 Ø8.0 Ø9.6
(Ø5/16") (Ø5/16") (Ø3/8")

8.0
(5/16")
12.3
(15/32")
Ø8.0 Ø8.0 Ø9.6
X Y-5 (Ø5/16") (Ø5/16") (Ø3/8")
Y 1.0
(1/32")
5.0 0.8 15.3
(3/16") 33.8 (1/32")
(1 11/32") (19/32")
M6
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
10.0 > Installs in side panel to accept Cabineo 8 M6 fitting
(13/32") > For wood thickness: M6x 12.3 mm insert: 14–16 mm
16.5 M6x 15.3 mm insert: 17–25 mm
(21/32")
> Material: Brass
Insert size Dim. X Dim. Y Item No. Packing
5 M6 x 12.3 13.5 14–16 267.91.314 100 pcs.
Ø5 (3/16")
(3/16") 11 16 M6 x 12.3 13.5 14–16 267.91.315 500 pcs.
(7/16") (5/8")
M6 x 15.3 16.5 17–25 267.91.316 100 pcs. Connectors and Shelf Supports
X 26 (1") M6 x 15.3 16.5 17–25 267.91.317 500 pcs.
14.8
(9/16")
3.6 15
(1/8") (9/16") → Cabineo 8 M6 Starter Kit
Item No.
267.91.319
> Press-fits into base panel and screw mounts into side panel Supplied With
with M6 threaded insert 80 Cabineo 8 M6
> Material: Plastic, fiberglass reinforced; Screw: Steel 40 Cabineo 8 M6 insert nut
40 Cabineo cover caps, signal white RAL 9003
Color Item No. Packing 1 Cabineo insert nut installation tool 11
120 mm SW4 hexagon bit with ball head
white 267.91.310 500 pcs.
white 267.91.311 2000 pcs.
black 267.91.312 500 pcs. → Cabineo Insert Nut Installation Tool
black 267.91.313 2000 pcs.

Item No.
267.91.318

www.hafele.com/us FC 11.39
