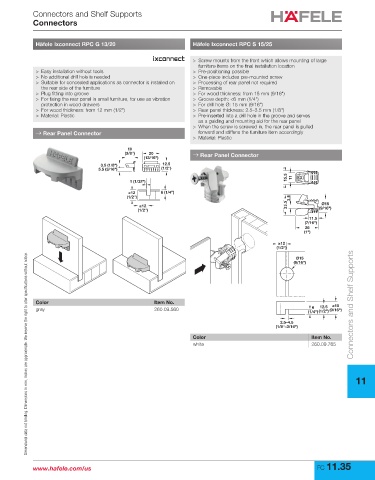

Connectors and Shelf Supports
Connectors

Häfele Ixconnect RPC G 13/20 Häfele Ixconnect RPC S 15/25

> Screw mounts from the front which allows mounting of large
furniture items on the final installation location
> Easy installation without tools > Pre-positioning possible
> No additional drill hole is needed > One-piece includes pre-mounted screw
> Suitable for concealed applications as connector is installed on > Processing of rear panel not required
the rear side of the furniture > Removable
> Plug fitting into groove > For wood thickness: from 15 mm (9/16")
> For fixing the rear panel in small furniture, for use as vibration > Groove depth: <6 mm (1/4")
protection in wood drawers > For drill hole Ø: 15 mm (9/16")
> For wood thickness: from 12 mm (1/2") > Rear panel thickness: 2.5–3.5 mm (1/8")
> Material: Plastic > Pre-inserted into a drill hole in the groove and serves
as a guiding and mounting aid for the rear panel
> When the screw is screwed in, the rear panel is pulled
→ Rear Panel Connector forward and stiffens the furniture item accordingly
> Material: Plastic
10
(3/8") 20 → Rear Panel Connector
(13/16")
3.5 (1/8") 12.5
5.5 (3/16") (1/2")
1 (1/32")

≥12 6 (1/4")
(1/2")
Ø15
≥12
(1/2") (9/16")
11.5
(7/16")
26
(1")
≥12
(1/2")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø15
(9/16")

Color Item No. ≥15 Connectors and Shelf Supports
gray 260.09.560 6 12.5 (9/16")
(1/4") (1/2")
2.5–4.5
(1/8"–3/16")
Color Item No.
white 260.09.765

11

www.hafele.com/us FC 11.35
