Connectors and Shelf Supports
Connectors

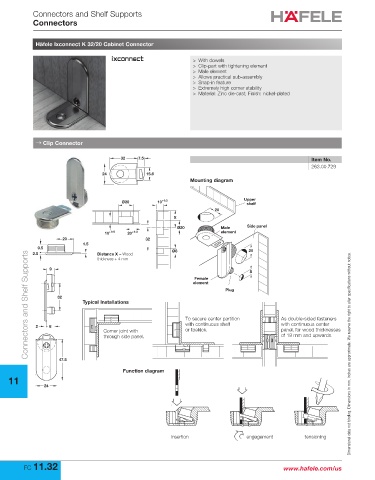

Häfele Ixconnect K 32/20 Cabinet Connector

> With dowels
> Clip-part with tightening element
> Male element
> Allows practical sub-assembly
> Snap-in feature
> Extremely high corner stability
> Material: Zinc die-cast; Finish: nickel-plated

→ Clip Connector

32 7.5 Item No.
263.00.729
24 15.6
Mounting diagram

Ø20 10 +0.5 Upper
shelf
20
X
Ø20 Male Side panel
10 +0.5 20 +0.3 element
20 32
1.5
9.5 20
Connectors and Shelf Supports
2.5 Distance X = Wood Ø8
thickness + 4 mm
9
8
Female
element
Plug
32
Typical Installations

To secure center partition As double-sided fasteners
with continuous shelf with continuous center
2 8
Corner joint with or toekick. panel, for wood thicknesses
through side panel. of 19 mm and upwards.

47.5 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Function diagram
11
24

Insertion engagement tensioning

FC 11.32 www.hafele.com/us
