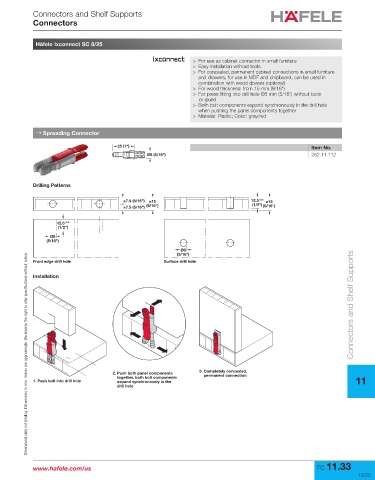

Connectors and Shelf Supports
Connectors

Häfele Ixconnect SC 8/25

> For use as cabinet connector in small furniture
> Easy installation without tools
> For concealed, permanent cabinet connections in small furniture
and drawers, for use in MDF and chipboard, can be used in
combination with wood dowels (optional)
> For wood thickness: from 15 mm (9/16")
> For press fitting into drill hole Ø8 mm (5/16") without tools
or glued
> Both bolt components expand synchronously in the drill hole
when pushing the panel components together
> Material: Plastic; Color: gray/red

→ Spreading Connector

25 (1") Item No.
Ø8 (5/16") 262.11.112

Drilling Patterns

≥7.5 (5/16") ≥15 12.5 +0.5 ≥15
≥7.5 (5/16") (9/16") (1/2") (9/16")

12.5 +0.5
(1/2")
Ø8
(5/16")
Ø8
(5/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Front edge drill hole Surface drill hole

Installation Connectors and Shelf Supports

3. Completely concealed,
2. Push both panel components
together, both bolt components permanent connection
1. Push bolt into drill hole expand synchronously in the 11
drill hole

www.hafele.com/us FC 11.33
