Connectors and Shelf Supports
Connectors

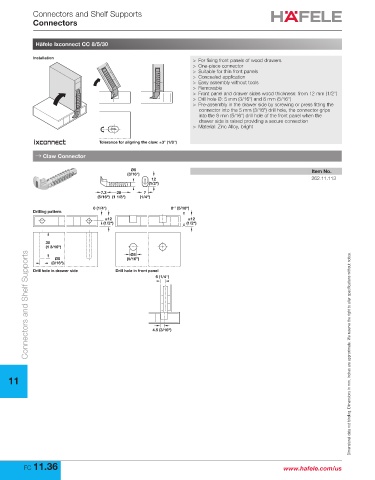

Häfele Ixconnect CC 8/5/30

Installation > For fixing front panels of wood drawers
> One-piece connector
> Suitable for thin front panels
> Concealed application
> Easy assembly without tools
> Removable
> Front panel and drawer sides wood thickness: from 12 mm (1/2")
> Drill hole Ø: 5 mm (3/16") and 8 mm (5/16")
> Pre-assembly in the drawer side by screwing or press fitting the
connector into the 5 mm (3/16") drill hole, the connector grips
into the 8 mm (5/16") drill hole of the front panel when the
drawer side is raised providing a secure connection
> Material: Zinc Alloy, bright

Tolerance for aligning the claw: ±3° (1/8")

→ Claw Connector

Ø5 Item No.
(3/16")
12 262.11.113
(1/2")
7.3 28 7
(5/16") (1 1/8") (1/4")
6 (1/4") 8 (5/16")
+1
Drilling pattern
≥12 ≥12
(1/2") (1/2")

30
(1 3/16")
Connectors and Shelf Supports
Ø8
Ø5 (5/16")
(3/16")
Drill hole in drawer side Drill hole in front panel
6 (1/4")

4.5 (3/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

11

FC 11.36 www.hafele.com/us
