P. 1192

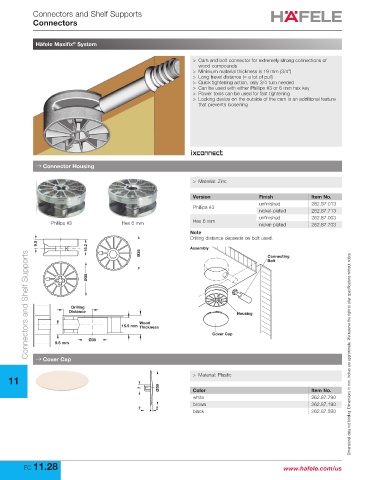

Connectors and Shelf Supports
Connectors
Häfele Maxifix System
®
> Cam and bolt connector for extremely strong connections of
wood compounds
> Minimum material thickness is 19 mm (3/4")
> Long travel distance (= a lot of pull)
> Quick tightening action, only 3/4 turn needed
> Can be used with either Phillips #3 or 6 mm hex key
> Power tools can be used for fast tightening
> Locking device on the outside of the cam is an additional feature
that prevents loosening
→ Connector Housing
> Material: Zinc
Version Finish Item No.
unfinished 262.87.013
Phillips #3
nickel-plated 262.87.713
unfinished 262.87.003
Phillips #3 Hex 6 mm Hex 6 mm nickel-plated 262.87.703
Note
Drilling distance depends on bolt used.
9.5
15.2 Assembly
Ø35 Connecting
Connectors and Shelf Supports
Bolt
Ø35
Drilling
Distance
Housing
Wood
15.5 mm Thickness
Cover Cap
Ø35
9.5 mm
→ Cover Cap Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic
11
7 Ø39 Color Item No.
white 262.87.790
brown 262.87.190
7 2
black 262.87.390
FC 11.28 www.hafele.com/us
