Connectors and Shelf Supports
Connectors

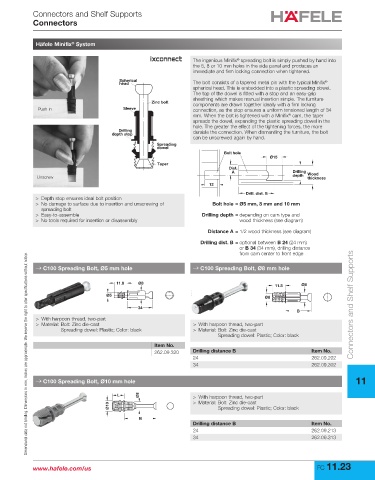

Häfele Minifix System
®

The ingenious Minifix spreading bolt is simply pushed by hand into
®
the 5, 8 or 10 mm holes in the side panel and produces an
immediate and firm locking connection when tightened.
Spherical The bolt consists of a tapered metal pin with the typical Minifix
®
head
spherical head. This is embedded into a plastic spreading dowel.
The top of the dowel is fitted with a stop and an easy-grip
sheathing which makes manual insertion simple. The furniture
Zinc bolt components are drawn together ideally with a firm locking
Push in Sleeve connection, as the stop ensures a uniform tensioned length of 34
mm. When the bolt is tightened with a Minifix cam, the taper
®
spreads the dowel, expanding the plastic spreading dowel in the
hole. The greater the effect of the tightening forces, the more
Drilling durable the connection. When dismantling the furniture, the bolt
depth stop
can be unscrewed again by hand.
Spreading
dowel
Bolt hole
Ø15
Taper
Dist.
A Drilling Wood
Unscrew depth thickness
12
Drill. dist. B
> Depth stop ensures ideal bolt position
> No damage to surface due to insertion and unscrewing of Bolt hole = Ø5 mm, 8 mm and 10 mm
spreading bolt
> Easy-to-assemble Drilling depth = depending on cam type and
> No tools required for insertion or disassembly wood thickness (see diagram)
Distance A = 1/2 wood thickness (see diagram)

Drilling dist. B = optional between B 24 (24 mm)
or B 34 (34 mm), drilling distance
from cam center to front edge
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ C100 Spreading Bolt, Ø5 mm hole → C100 Spreading Bolt, Ø8 mm hole

11.8 Ø8 Ø8
11.5
Ø5 Ø8
34 Connectors and Shelf Supports
B
> With harpoon thread, two-part
> Material: Bolt: Zinc die-cast > With harpoon thread, two-part
Spreading dowel: Plastic; Color: black > Material: Bolt: Zinc die-cast
Spreading dowel: Plastic; Color: black
Item No.
262.09.320 Drilling distance B Item No.
24 262.09.202
34 262.09.302

→ C100 Spreading Bolt, Ø10 mm hole 11

> With harpoon thread, two-part
> Material: Bolt: Zinc die-cast
Spreading dowel: Plastic; Color: black

Drilling distance B Item No.
24 262.09.213
34 262.09.313
