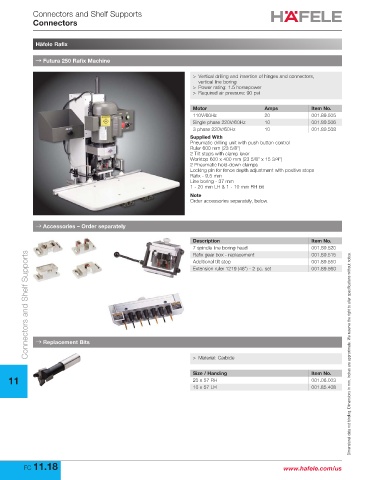

Connectors and Shelf Supports
Connectors
Häfele Rafix
→ Futura 250 Rafix Machine
> Vertical drilling and insertion of hinges and connectors,
vertical line boring
> Power rating: 1.5 horsepower
> Required air pressure: 90 psi
Motor Amps Item No.
110V/60Hz 20 001.89.505
Single phase 220V/60Hz 10 001.89.506
3 phase 220V/60Hz 10 001.89.508
Supplied With
Pneumatic drilling unit with push button control
Ruler 600 mm (23 5/8")
2 Tilt stops with clamp lever
Worktop 600 x 400 mm (23 5/8" x 15 3/4")
2 Pneumatic hold-down clamps
Locking pin for fence depth adjustment with positive stops
Rafix - 9.5 mm
Line boring - 37 mm
1 - 20 mm LH & 1 - 10 mm RH bit
Note
Order accessories separately, below.
→ Accessories – Order separately
Description Item No.
7 spindle line boring head 001.89.520
Connectors and Shelf Supports
Rafix gear box - replacement 001.89.515
Additional tilt stop 001.89.550
Extension ruler 1219 (48") - 2 pc. set 001.89.560
→ Replacement Bits
> Material: Carbide Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Size / Handing Item No.
11 20 x 57 RH 001.08.003
10 x 57 LH 001.85.408
