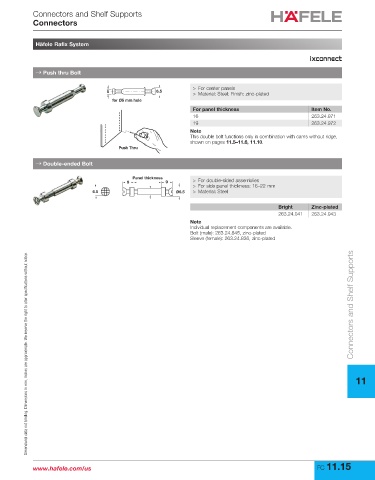

Connectors and Shelf Supports
Connectors
Häfele Rafix System
→ Push thru Bolt
> For center panels
5 6.5 > Material: Steel; Finish: zinc-plated
for Ø5 mm hole
For panel thickness Item No.
16 263.24.971
19 263.24.972
Note
This double bolt functions only in combination with cams without ridge,
shown on pages 11.5–11.6, 11.10.
Push Thru
→ Double-ended Bolt
Panel thickness
9 9 > For double-sided assemblies
> For side panel thickness: 16–22 mm
6.5 Ø6.5 > Material: Steel
Bright Zinc-plated
263.24.041 263.24.943
Note
Individual replacement components are available.
Bolt (male): 263.24.845, zinc-plated
Sleeve (female): 263.24.836, zinc-plated Connectors and Shelf Supports
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
11
www.hafele.com/us FC 11.15
