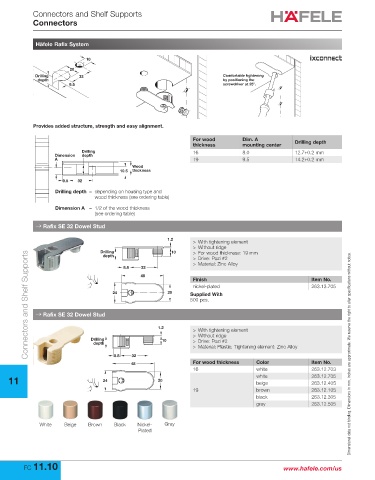

P. 1174
Connectors and Shelf Supports
Connectors
Häfele Rafix System
10
20
Drilling 32 Comfortable tightening
depth by positioning the
9.5 screwdriver at 25°.
Provides added structure, strength and easy alignment.
For wood Dim. A
thickness mounting center Drilling depth
Drilling 16 8.0 12.7+0.2 mm
Dimension depth
A 19 9.5 14.2+0.2 mm
Wood
10.5 thickness
9.5 32
Drilling depth = depending on housing type and
wood thickness (see ordering table)
Dimension A = 1/2 of the wood thickness
(see ordering table)
→ Rafix SE 32 Dowel Stud
1.2 > With tightening element
> Without ridge
Drilling 10 > For wood thickness: 19 mm
Connectors and Shelf Supports
depth
> Drive: Pozi #2
> Material: Zinc Alloy
8.8 32
48
Finish Item No.
nickel-plated 263.13.705
24 20 Supplied With
500 pcs.
→ Rafix SE 32 Dowel Stud
1.2 > With tightening element
> Without ridge
Drilling 10 > Drive: Pozi #2
depth
> Material: Plastic; Tightening element: Zinc Alloy
8.8 32 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
48 For wood thickness Color Item No.
16 white 263.12.703
11 24 20 white 263.12.705
beige
263.12.405
19 brown 263.12.105
black 263.12.305
gray 263.12.505
White Beige Brown Black Nickel- Gray
Plated
FC 11.10 www.hafele.com/us
