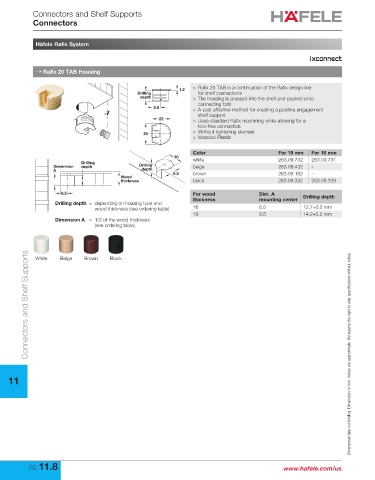

P. 1172
Connectors and Shelf Supports
Connectors
Häfele Rafix System
→ Rafix 20 TAB Housing
1.2 > Rafix 20 TAB is a continuation of the Rafix design line
Drilling for shelf connections
depth > The housing is pressed into the shelf and pushed onto
connecting bolt
8.8 > A cost effective method for creating a positive engagement
shelf support
22 > Uses standard Rafix machining while allowing for a
tool-free connection
24 > Without tightening element
> Material: Plastic
Color For 19 mm For 16 mm
20
Drilling white 263.09.732 263.09.731
Dimension depth Drilling beige 263.09.432 -
A depth 9.5 brown 263.09.132 -
Wood
thickness black 263.09.332 263.09.339
9.5 For wood Dim. A
thickness mounting center Drilling depth
Drilling depth = depending on housing type and
wood thickness (see ordering table) 16 8.0 12.7+0.2 mm
19 9.5 14.2+0.2 mm
Dimension A = 1/2 of the wood thickness
(see ordering table)
Connectors and Shelf Supports
White Beige Brown Black
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 11.8 www.hafele.com/us
