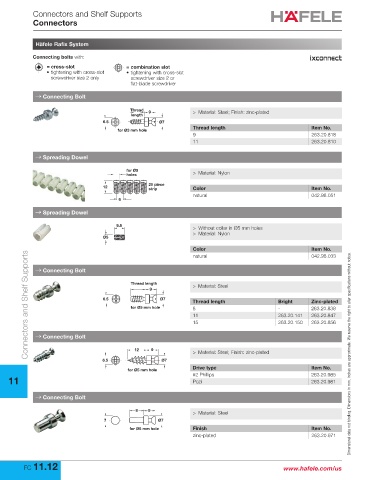

P. 1176
Connectors and Shelf Supports
Connectors
Häfele Rafix System
Connecting bolts with:
= cross-slot = combination slot
• tightening with cross-slot • tightening with cross-slot
screwdriver size 2 only screwdriver size 2 or
flat-blade screwdriver
→ Connecting Bolt
Thread 9 > Material: Steel; Finish: zinc-plated
length
6.5 Ø7
Thread length Item No.
for Ø3 mm hole
9 263.20.818
11 263.20.810
→ Spreading Dowel
for Ø5
holes > Material: Nylon
20 piece
12 strip Color Item No.
natural 042.98.051
6
→ Spreading Dowel
9.5
> Without collar in Ø5 mm holes
> Material: Nylon
Ø5
Color Item No.
Connectors and Shelf Supports
natural 042.98.033
→ Connecting Bolt
Thread length > Material: Steel
9
6.5 Ø7
Thread length Bright Zinc-plated
for Ø5 mm hole 8 - 263.20.838
11 263.20.141 263.20.847
15 263.20.150 263.20.856
→ Connecting Bolt
12 9 > Material: Steel; Finish: zinc-plated Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
6.5 Ø7
for Ø5 mm hole Drive type Item No.
263.20.985
#2 Phillips
11 Pozi 263.20.981
→ Connecting Bolt
8 9 > Material: Steel
7 Ø7
for Ø5 mm hole Finish Item No.
zinc-plated 263.20.971
FC 11.12 www.hafele.com/us
