Connectors and Shelf Supports
Connectors

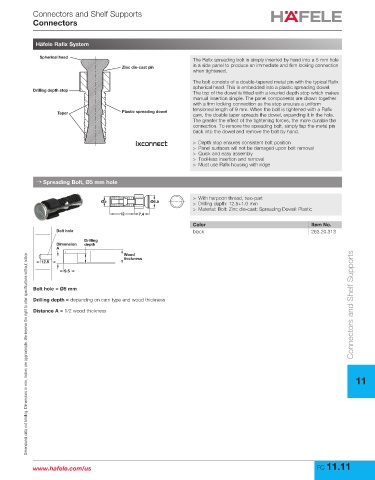

Häfele Rafix System

Spherical head The Rafix spreading bolt is simply inserted by hand into a 5 mm hole
in a side panel to produce an immediate and firm locking connection
Zinc die-cast pin
when tightened.
The bolt consists of a double-tapered metal pin with the typical Rafix
spherical head. This is embedded into a plastic spreading dowel.
Drilling depth stop The top of the dowel is fitted with a knurled depth stop which makes
manual insertion simple. The panel components are drawn together
with a firm locking connection as the stop ensures a uniform
tensioned length of 9 mm. When the bolt is tightened with a Rafix
Taper Plastic spreading dowel cam, the double taper spreads the dowel, expanding it in the hole.
The greater the effect of the tightening forces, the more durable the
connection. To remove the spreading bolt, simply tap the metal pin
back into the dowel and remove the bolt by hand.
> Depth stop ensures consistent bolt position
> Panel surfaces will not be damaged upon bolt removal
> Quick and easy assembly
> Tool-less insertion and removal
> Must use Rafix housing with ridge

→ Spreading Bolt, Ø5 mm hole

> With harpoon thread, two-part
Ø5 Ø6.5 > Drilling depth: 12.5+1.0 mm
> Material: Bolt: Zinc die-cast; Spreading Dowel: Plastic
12 7.4
Color Item No.
Bolt hole black 263.20.313
Drilling
Dimension depth
A
Wood
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
thickness
12.5
9.5

Bolt hole = Ø5 mm
Drilling depth = depending on cam type and wood thickness Connectors and Shelf Supports

Distance A = 1/2 wood thickness

11
