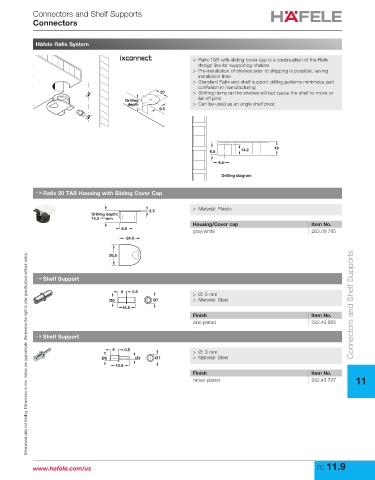

P. 1173
Connectors and Shelf Supports
Connectors
Häfele Rafix System
> Rafix TAB with sliding cover cap is a continuation of the Rafix
design line for supporting shelves
> Pre-installation of shelves prior to shipping is possible, saving
installation time
> Standard Rafix and shelf support drilling patterns minimizes part
confusion in manufacturing
20 > Shifting items on the shelves will not cause the shelf to move or
fall off pins
Drilling
depth > Can be used as an angle shelf pivot
9.5
9.5 14.2 19
9.5
Drilling diagram
→ Rafix 20 TAB Housing with Sliding Cover Cap
> Material: Plastic
2.3
Drilling depth:
14.2 +0.2 mm
Housing/Cover cap Item No.
8.8
gray/white 263.09.795
24.5
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
26.5
→ Shelf Support
8 0.5
> Ø: 5 mm
Ø5 Ø7 > Material: Steel
16.5 Connectors and Shelf Supports
Finish Item No.
zinc-plated 282.43.905
→ Shelf Support
8 0.5 > Ø: 3 mm
Ø5 Ø3 Ø7 > Material: Steel
18.5
Finish Item No.
nickel-plated 282.43.727 11
www.hafele.com/us FC 11.9
