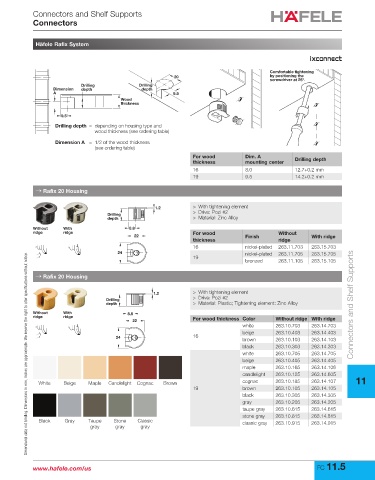

Page 1169 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Connectors and Shelf Supports
Connectors

Häfele Rafix System

Comfortable tightening
20 by positioning the
screwdriver at 25°.
Drilling Drilling
Dimension depth depth
A 9.5
Wood
thickness
9.5
Drilling depth = depending on housing type and
wood thickness (see ordering table)

Dimension A = 1/2 of the wood thickness
(see ordering table)
For wood Dim. A
thickness mounting center Drilling depth
16 8.0 12.7+0.2 mm
19 9.5 14.2+0.2 mm

→ Rafix 20 Housing

1.2 > With tightening element
Drilling > Drive: Pozi #2
depth > Material: Zinc Alloy
Without With 8.8
ridge ridge For wood Without
22 Finish With ridge
thickness ridge
16 nickel-plated 263.11.703 263.15.703
24 nickel-plated 263.11.705 263.15.705
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
19
bronzed 263.11.105 263.15.105
→ Rafix 20 Housing

1.2 > With tightening element
Drilling > Drive: Pozi #2
depth > Material: Plastic; Tightening element: Zinc Alloy Connectors and Shelf Supports
Without With 8.8
ridge ridge For wood thickness Color Without ridge With ridge
22
white 263.10.703 263.14.703
beige 263.10.403 263.14.403
24 16
brown 263.10.103 263.14.103
black 263.10.303 263.14.303
white 263.10.705 263.14.705
beige 263.10.405 263.14.405
maple 263.10.165 263.14.106
candlelight 263.10.125 263.14.605
White Beige Maple Candlelight Cognac Brown cognac 263.10.185 263.14.107 11
19 brown 263.10.105 263.14.105
black 263.10.305 263.14.305
gray 263.10.205 263.14.205
taupe gray 263.10.615 263.14.615
stone gray 263.10.815 263.14.815
Black Gray Taupe Stone Classic classic gray 263.10.915 263.14.915
gray gray gray

www.hafele.com/us FC 11.5
