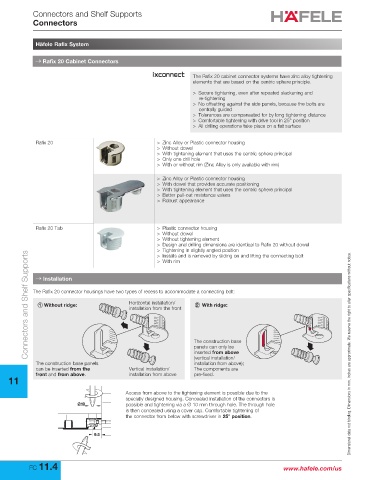

Connectors and Shelf Supports
Connectors

Häfele Rafix System

→ Rafix 20 Cabinet Connectors

The Rafix 20 cabinet connector systems have zinc alloy tightening
elements that are based on the centric sphere principle.
> Secure tightening, even after repeated slackening and
re-tightening
> No offsetting against the side panels, because the bolts are
centrally guided
> Tolerances are compensated for by long tightening distance
> Comfortable tightening with drive tool in 25° position
> All drilling operations take place on a flat surface

Rafix 20 > Zinc Alloy or Plastic connector housing
> Without dowel
> With tightening element that uses the centric sphere principal
> Only one drill hole
> With or without rim (Zinc Alloy is only available with rim)

> Zinc Alloy or Plastic connector housing
> With dowel that provides accurate positioning
> With tightening element that uses the centric sphere principal
> Better pull-out resistance values
> Robust appearance

Rafix 20 Tab > Plastic connector housing
> Without dowel
> Without tightening element
> Design and drilling dimensions are identical to Rafix 20 without dowel
> Tightening in slightly angled position
Connectors and Shelf Supports
> Installs and is removed by sliding on and lifting the connecting bolt
> With rim

→ Installation

The Rafix 20 connector housings have two types of recess to accommodate a connecting bolt:
Horizontal installation/
1 Without ridge: 2 With ridge:
installation from the front

The construction base
panels can only be
inserted from above Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(vertical installation/
The construction base panels installation from above);
can be inserted from the Vertical installation/ The components are
front and from above. installation from above pre-fixed.
11

Access from above to the tightening element is possible due to the
specially designed housing. Concealed installation of the connectors is
possible and tightening via a Ø 10 mm through hole. The through hole
is then concealed using a cover cap. Comfortable tightening of
the connector from below with screwdriver in 25° position.
