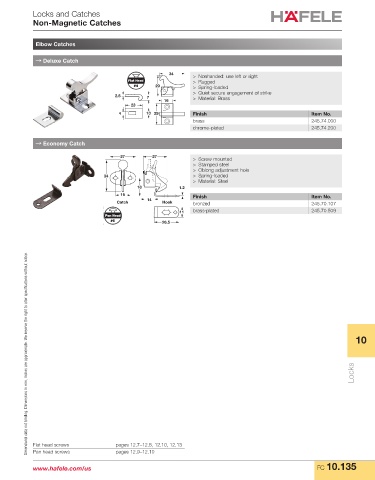

Locks and Catches
Non-Magnetic Catches
Elbow Catches
→ Deluxe Catch
34 > Nonhanded: use left or right
Flat Head > Rugged
#4 29 > Spring-loaded
> Quiet secure engagement of strike
2.5 7 > Material: Brass
16
23
4 13 29 Finish Item No.
brass 245.74.000
chrome-plated 245.74.200
→ Economy Catch
27 27 > Screw mounted
> Stamped steel
> Oblong adjustment hole
34 > Spring-loaded
> Material: Steel
18 1.2
16 Finish Item No.
14
Catch Hook bronzed 245.70.107
11 brass-plated 245.70.509
Pan Head
#6 26.5
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
10
Locks
Flat head screws pages 12.7–12.8, 12.10, 12.13
Pan head screws pages 12.9–12.10
