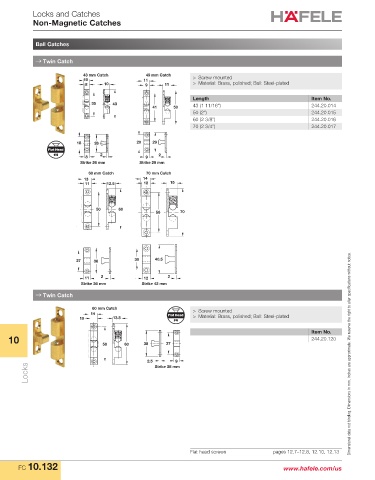

P. 1158
Locks and Catches
Non-Magnetic Catches
Ball Catches
→ Twin Catch
43 mm Catch 49 mm Catch > Screw mounted
10 11
8 10 9 11 > Material: Brass, polished; Ball: Steel-plated
Length Item No.
35 43 43 (1 11/16") 244.20.014
41 50
50 (2") 244.20.015
60 (2 3/8") 244.20.016
70 (2 3/4") 244.20.017
18 26 20 29
Flat Head
#4 2 2
8 9
Strike 26 mm Strike 29 mm
60 mm Catch 70 mm Catch
13 14
11 12.5 12 15
50 60
56 70
27 36 30 40.5
11 2 12 2
Strike 36 mm Strike 42 mm
→ Twin Catch
60 mm Catch > Screw mounted
14 Flat Head
10 13.5 > Material: Brass, polished; Ball: Steel-plated
#4
Item No.
10 244.20.120
50 60 38 27
9
2.5 Strike 38 mm Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks
Flat head screws pages 12.7–12.8, 12.10, 12.13
