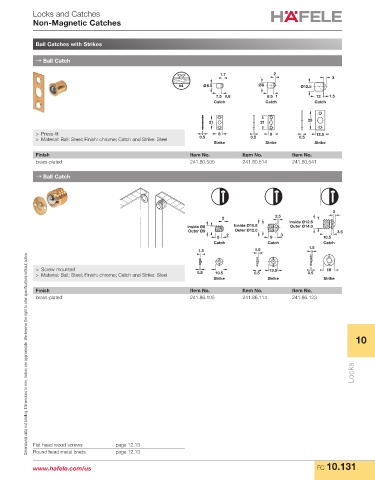

P. 1157
Locks and Catches
Non-Magnetic Catches
Ball Catches with Strikes
→ Ball Catch
1.7 2
3
#4 Ø6.5 Ø8 Ø12.5
7.5 0.8 8.5 1 12 1.5
Catch Catch Catch
21 21 28
> Press-fit 8 9 12.5
> Material: Ball: Steel; Finish: chrome; Catch and Strike: Steel 0.5 0.5 0.5
Strike Strike Strike
Finish Item No. Item No. Item No.
brass-plated 241.80.505 241.80.514 241.80.541
→ Ball Catch
3
2.5
2
Inside Ø12.6
Inside Ø8 Inside Ø10.8 Outer Ø14.0
Outer Ø9 Outer Ø12.0 3.5
8 2 9 3 10.5
Catch Catch Catch
1.5 1.5 1.5
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Screw mounted 13.5 16
> Material: Ball: Steel; Finish: chrome; Catch and Strike: Steel 0.5 10.5 0.5 0.5
Strike Strike Strike
Finish Item No. Item No. Item No.
brass-plated 241.86.105 241.86.114 241.86.123
10
Locks
Flat head wood screws page 12.13
Round head metal brads page 12.13
www.hafele.com/us FC 10.131
