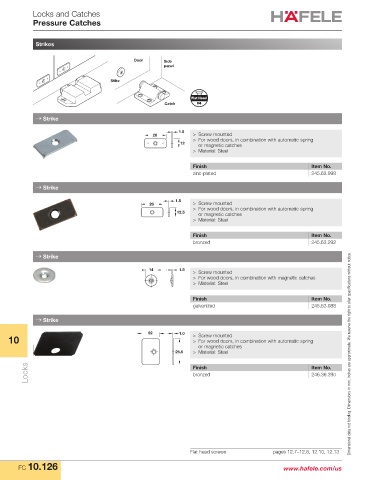

P. 1152
Locks and Catches
Pressure Catches
Strikes
Door Side
panel
Stike
Flat Head
Catch #4
→ Strike
1.5
26 > Screw mounted
> For wood doors, in combination with automatic spring
12 or magnetic catches
> Material: Steel
Finish Item No.
zinc-plated 245.63.998
→ Strike
1.5
26 > Screw mounted
> For wood doors, in combination with automatic spring
12.5 or magnetic catches
> Material: Steel
Finish Item No.
bronzed 245.63.292
→ Strike
14 1.5
> Screw mounted
> For wood doors, in combination with magnetic catches
> Material: Steel
Finish Item No.
galvanized 245.63.988
→ Strike
22 1.0 > Screw mounted
10 > For wood doors, in combination with automatic spring
or magnetic catches
25.5 > Material: Steel Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks Finish Item No.
bronzed
246.36.390
Flat head screws pages 12.7–12.8, 12.10, 12.13
FC 10.126 www.hafele.com/us
