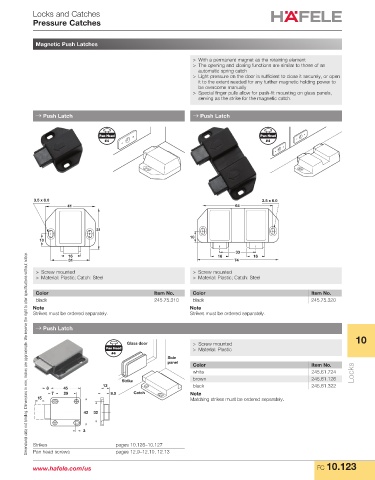

Page 1149 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Pressure Catches

Magnetic Push Latches

> With a permanent magnet as the retaining element
> The opening and closing functions are similar to those of an
automatic spring catch
> Light pressure on the door is sufficient to close it securely, or open
it to the extent needed for any further magnetic holding power to
be overcome manually
> Special finger pulls allow for push-fit mounting on glass panels,
serving as the strike for the magnetic catch.

→ Push Latch → Push Latch

Pan Head Pan Head
#4 #4

3.5 x 6.0 3.5 x 6.0
41 64

31
10
10
33
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
16 16 16
31 74
> Screw mounted > Screw mounted
> Material: Plastic; Catch: Steel > Material: Plastic; Catch: Steel

Color Item No. Color Item No.
black 245.75.310 black 245.75.320
Note Note
Strikes must be ordered separately. Strikes must be ordered separately.

→ Push Latch
10
Glass door > Screw mounted
Pan Head > Material: Plastic
#4
Side
panel
Color Item No.
white 245.61.724 Locks
Strike brown 245.61.126
13 black 245.61.322
8 45
7 29 8.5 Catch Note
15 Matching strikes must be ordered separately.

42 32

3

Strikes pages 10.126–10.127
Pan head screws pages 12.9–12.10, 12.13

www.hafele.com/us FC 10.123
