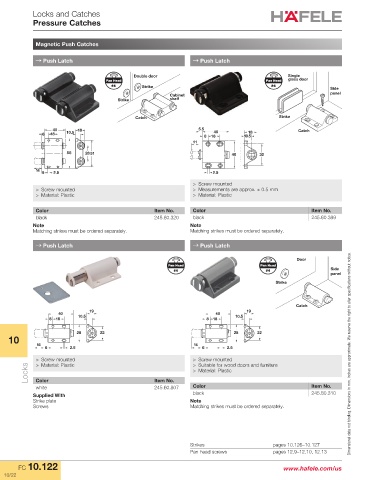

Locks and Catches
Pressure Catches
Magnetic Push Catches
→ Push Latch → Push Latch
Double door Single
Pan Head Pan Head glass door
#4 Strike #4 Side
Cabinet panel
Strike shelf
Catch Strike
40 18 5.5 40 Catch
18
6 18 10.5 8 18 10.5
11
58 28 51 40 32
14
6 2.5 2.5
> Screw mounted
> Screw mounted > Measurements are approx. ± 0.5 mm
> Material: Plastic > Material: Plastic
Color Item No. Color Item No.
black 245.80.320 black 245.60.389
Note Note
Matching strikes must be ordered separately. Matching strikes must be ordered separately.
→ Push Latch → Push Latch
Door
Pan Head Pan Head
#4 #4 Side
panel
Strike
Catch
19 19
40 40
8 18 10.5 8 18 10.5
28 22 28 22
10
14 14
6 2.5 6 2.5
> Screw mounted > Screw mounted Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic
> Suitable for wood doors and furniture
Locks > Material: Plastic
Color
white Item No. Color Item No.
245.60.807
Supplied With black 245.80.310
Strike plate Note
Screws Matching strikes must be ordered separately.
Strikes pages 10.126–10.127
Pan head screws pages 12.9–12.10, 12.13
