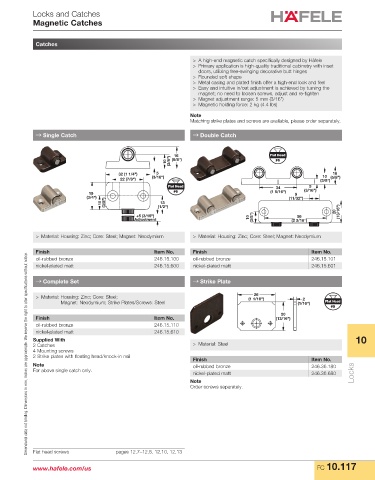

Page 1143 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Magnetic Catches

Catches

> A high-end magnetic catch specifically designed by Häfele
> Primary application is high-quality traditional cabinetry with inset
doors, utilizing free-swinging decorative butt hinges
> Rounded soft shape
> Metal casing and plated finish offer a high-end look and feel
> Easy and intuitive in/out adjustment is achieved by turning the
magnet; no need to loosen screws, adjust and re-tighten
> Magnet adjustment range: 5 mm (3/16")
> Magnetic holding force: 2 kg (4.4 lbs)
Note
Matching strike plates and screws are available, please order separately.

→ Single Catch → Double Catch

16 Flat Head
10 (3/8") (5/8") #6

32 (1 1/4") 5 10 16
22 (7/8") (3/16") (3/8") (5/8")
Flat Head 34 5
19 #6 (1 5/16") 9 (3/16")
(3/4") (11/32")
10 (3/8") (1/2")
13
20 (13/16")
+5 (3/16") 10 56
Adjustment (3/8") (2 3/16")

> Material: Housing: Zinc; Core: Steel; Magnet: Neodymium > Material: Housing: Zinc; Core: Steel; Magnet: Neodymium

Finish Item No. Finish Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
oil-rubbed bronze 246.15.100 oil-rubbed bronze 246.15.101
nickel-plated matt 246.15.600 nickel-plated matt 246.15.601

→ Complete Set → Strike Plate

26
> Material: Housing: Zinc; Core: Steel; (1 1/16") 2
Magnet: Neodymium; Strike Plates/Screws: Steel (1/16") Flat Head
#5
20
Finish Item No. (13/16")
oil-rubbed bronze 246.15.110
nickel-plated matt 246.15.610
Supplied With 10
2 Catches > Material: Steel
4 Mounting screws
2 Strike plates with floating head/knock-in nail
Finish Item No.
Note oil-rubbed bronze 246.36.180
For above single catch only.
nickel-plated matt 246.36.680 Locks
Note
Order screws separately.

Flat head screws pages 12.7–12.8, 12.10, 12.13
