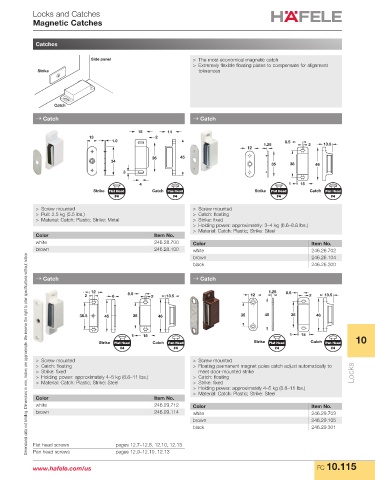

Locks and Catches
Magnetic Catches

Catches

Side panel > The most economical magnetic catch
> Extremely flexible floating plates to compensate for alignment
Strike tolerances

Catch

→ Catch → Catch
15 14
13 2
1.0 8.5
1.25 2 13.5
12
36 45
34
35 38 46
3
4 1 15
Strike Flat Head Catch Pan Head Strike Flat Head Catch Pan Head
#4 #4 #4 #4
> Screw mounted > Screw mounted
> Pull: 2.5 kg (5.5 lbs.) > Catch: floating
> Material: Catch: Plastic; Strike: Metal > Strike: fixed
> Holding power: approximately: 3–4 kg (6.6–8.8 lbs.)
> Material: Catch: Plastic; Strike: Steel
Color Item No.
white 246.28.700 Color Item No.
brown 246.28.100 white 246.26.702
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
brown 246.26.104
black 246.26.300

→ Catch → Catch

12 1.25 8.5
2 6 8.5 2 13.5 12 2 13.5

36.5 45 38 46 35 45 38 46

1 15 1 15
Strike Flat Head Catch Pan Head Strike Flat Head Catch Pan Head 10
#4 #4 #4 #4

> Screw mounted > Screw mounted
> Catch: floating > Floating permanent magnet poles catch adjust automatically to
> Strike: fixed meet door-mounted strike Locks
> Holding power: approximately 4–5 kg (8.8–11 lbs.) > Catch: floating
> Material: Catch: Plastic; Strike: Steel > Strike: fixed
> Holding power: approximately 4–5 kg (8.8–11 lbs.)
> Material: Catch: Plastic; Strike: Steel
Color Item No.
white 246.29.712 Color Item No.
brown 246.29.114 white 246.29.703
brown 246.29.105
black 246.29.301

Flat head screws pages 12.7–12.8, 12.10, 12.13
Pan head screws pages 12.9–12.10, 12.13
