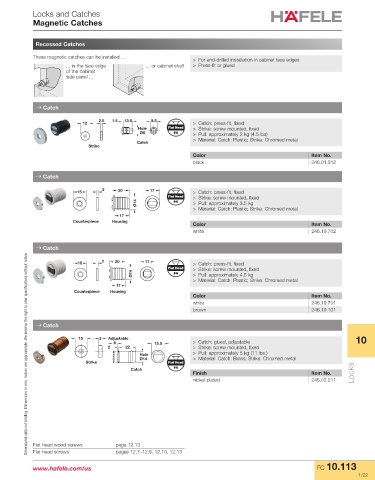

Locks and Catches
Magnetic Catches

Recessed Catches

These magnetic catches can be installed ... > For end-drilled installation in cabinet face edges
... in the face edge ... or cabinet shelf > Press-fit or glued
of the cabinet
side panel ...

→ Catch

2.5 1.5 13.5 9.5
12 > Catch: press-fit, fixed
Hole Flat Head > Strike: screw mounted, fixed
Ø8 #4 > Pull: approximately 2 kg (4.5 lbs)
> Material: Catch: Plastic; Strike: Chromed metal
Catch
Strike
Color Item No.
black 246.01.312

→ Catch

2 20 17
15 > Catch: press-fit, fixed
Flat Head > Strike: screw mounted, fixed
Ø14 #4 > Pull: approximately 3.5 kg
> Material: Catch: Plastic; Strike: Chromed metal
17
Counterpiece Housing
Color Item No.
white 246.19.702

→ Catch
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
15 2 20 17 > Catch: press-fit, fixed
Flat Head > Strike: screw mounted, fixed
Ø14 #4 > Pull: approximately 4.5 kg
> Material: Catch: Plastic; Strike: Chromed metal
17
Counterpiece Housing
Color Item No.
white 246.19.701
brown 246.19.101

→ Catch
15 3 Adjustable 10
6 15.5 > Catch: glued, adjustable
2 22 > Strike: screw mounted, fixed
Hole > Pull: approximately 5 kg (11 lbs.)
Ø14 > Material: Catch: Brass; Strike: Chromed metal
Strike Flat Head
Catch #4
Finish Item No. Locks
nickel-plated 246.02.211

Flat head wood screws page 12.13
Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 10.113
1/22
