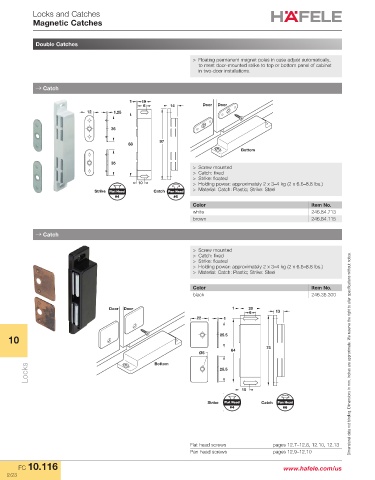

Locks and Catches
Magnetic Catches

Double Catches

> Floating permanent magnet poles in case adjust automatically,
to meet door-mounted strike to top or bottom panel of cabinet
in two-door installations.

→ Catch

1 19
6 14 Door Door
12 1.25

35
97
88
Bottom

35
> Screw mounted
> Catch: fixed
> Strike: floated
10 > Holding power: approximately 2 x 3–4 kg (2 x 6.6–8.8 lbs.)
Strike Flat Head Catch Pan Head > Material: Catch: Plastic; Strike: Steel
#4 #6
Color Item No.
white 246.84.713
brown 246.84.115

→ Catch

> Screw mounted
> Catch: fixed
> Strike: floated
> Holding power: approximately 2 x 3–4 kg (2 x 6.6–8.8 lbs.)
> Material: Catch: Plastic; Strike: Steel

Color Item No.
black 246.36.300
Door Door 1 20
6 13
22 1

10 25.5
75
64
Ø5 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks Bottom 25.5

10

Strike Flat Head Catch Pan Head
#4 #6

Flat head screws pages 12.7–12.8, 12.10, 12.13
Pan head screws pages 12.9–12.10
