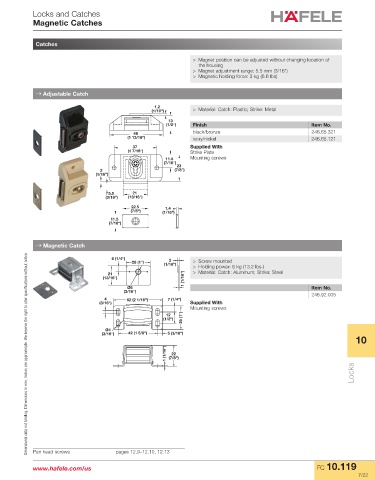

Locks and Catches
Magnetic Catches

Catches

> Magnet position can be adjusted without changing location of
the housing
> Magnet adjustment range: 5.5 mm (3/16")
> Magnetic holding force: 3 kg (6.6 lbs)

→ Adjustable Catch

1.2
(1/16") > Material: Catch: Plastic; Strike: Metal
13
(1/2") Finish Item No.
46 black/bronze 246.65.321
(1 13/16") ivory/nickel 246.65.121
37 Supplied With
(1 7/16") Strike Plate
11.5 Mounting screws
(7/16")
23
2 (7/8")
(1/16")

5.5 21
(3/16") (13/16")
22.5 1.4
(7/8") (1/16")
11.5
(7/16")

→ Magnetic Catch
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
6 (1/4") 2
26 (1") (1/16") > Screw mounted
> Holding power: 6 kg (13.2 lbs.)
21 > Material: Catch: Aluminum; Strike: Steel
(13/16") 1 (1/16")
Ø5 Item No.
(3/16")
246.92.005
4 52 (2 1/16") 7 (1/4")
(3/16") Supplied With
Mounting screws
12
(1/2") 25 (1")
Ø4
(3/16") 42 (1 5/8") 5 (3/16")
10
1 (1/16") (7/8")
22
Locks

Pan head screws pages 12.9–12.10, 12.13

www.hafele.com/us FC 10.119
7/22
