P. 1136
Locks and Catches
Cabinet Locks
Battery-operated Furniture Locks

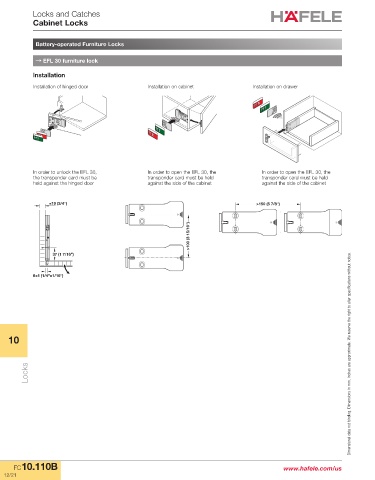

→ EFL 30 furniture lock
Installation
Installation of hinged door Installation on cabinet Installation on drawer
In order to unlock the EFL 30, In order to open the EFL 30, the In order to open the EFL 30, the
the transponder card must be transponder card must be held transponder card must be held
held against the hinged door against the side of the cabinet against the side of the cabinet
≤19 (3/4") >150 (5 7/8")
>100 (3 15/16")
37 (1 7/16")
6±1 (1/4"±1/16")
10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks
FC 10.110B www.hafele.com/us
12/21
