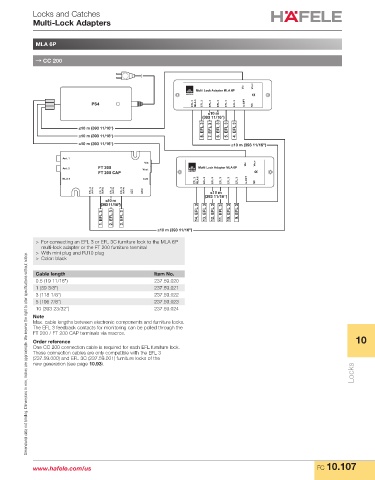

P. 1131
Locks and Catches
Multi-Lock Adapters
MLA 6P
→ CC 200
≤10 m
(393 11/16")
≤10 m (393 11/16")
≤10 m (393 11/16")
≤10 m (393 11/16") ≤10 m (393 11/16")
≤10 m
(393 11/16")
≤10 m
(393 11/16")
≤10 m (393 11/16")
> For connecting an EFL 3 or EFL 3C furniture lock to the MLA 6P
multi-lock adapter or the FT 200 furniture terminal
> With mini plug and RJ10 plug
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Color: black
Cable length Item No.
0.5 (19 11/16") 237.59.020
1 (39 3/8") 237.59.021
3 (118 1/8") 237.59.022
5 (196 7/8") 237.59.023
10 (393 23/32") 237.59.024
Note
Max. cable lengths between electronic components and furniture locks.
The EFL 3 feedback contacts for monitoring can be polled through the
FT 200 / FT 200 CAP terminals via macros.
Order reference 10
One CC 200 connection cable is required for each EFL furniture lock.
These connection cables are only compatible with the EFL 3
(237.59.000) and EFL 3C (237.59.001) furniture locks of the
new generation (see page 10.93).
Locks
www.hafele.com/us FC 10.107
