Locks and Catches
Furniture Terminals and Antennas

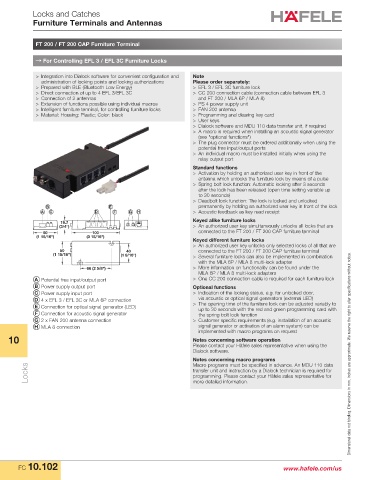

FT 200 / FT 200 CAP Furniture Terminal

→ For Controlling EFL 3 / EFL 3C Furniture Locks

> Integration into Dialock software for convenient configuration and Note
administration of locking points and locking authorizations Please order separately:
> Prepared with BLE (Bluetooth Low Energy) > EFL 3 / EFL 3C furniture lock
> Direct connection of up to 4 EFL 3/EFL 3C > CC 200 connection cable (connection cable between EFL 3
> Connection of 2 antennas and FT 200 / MLA 6P / MLA 8)
> Extension of functions possible using individual macros > PS 4 power supply unit
> Intelligent furniture terminal, for controlling furniture locks > FAN 200 antenna
> Material: Housing: Plastic; Color: black > Programming and clearing key card
> User keys
> Dialock software and MDU 110 data transfer unit, if required
> A macro is required when installing an acoustic signal generator
(see "optional functions")
> The plug connector must be ordered additionally when using the
potential free input/output ports
> An individual macro must be installed initially when using the
relay output port
Standard functions
> Activation by holding an authorized user key in front of the
antenna which unlocks the furniture lock by means of a pulse
> Spring bolt lock function: Automatic locking after 3 seconds
after the lock has been released (open time setting variable up
to 30 seconds)
> Deadbolt lock function: The lock is locked and unlocked
B E permanently by holding an authorized user key in front of the lock
A C D F G H > Acoustic feedback as key read receipt
Keyed alike furniture locks
19.7
(3/4") > An authorized user key simultaneously unlocks all locks that are
50 100 connected to the FT 200 / FT 200 CAP furniture terminal
(1 15/16") (3 15/16")
Keyed different furniture locks
> An authorized user key unlocks only selected locks of all that are
50 40 connected to the FT 200 / FT 200 CAP furniture terminal
(1 15/16") (1 9/16") > Several furniture locks can also be implemented in combination
with the MLA 6P / MLA 8 multi-lock adapter
66 (2 5/8") > More information on functionality can be found under the
MLA 6P / MLA 8 multi-lock adapters
A Potential free input/output port > One CC 200 connection cable is required for each furniture lock

B Power supply output port Optional functions

C Power supply input port > Indication of the locking status, e.g. for unlocked door,

D 4 x EFL 3 / EFL 3C or MLA 6P connection via acoustic or optical signal generators (external LED)

E Connection for optical signal generator (LED) > The opening time of the furniture lock can be adjusted variably to

up to 30 seconds with the red and green programming card with
F Connection for acoustic signal generator the spring bolt lock function

G 2 x FAN 200 antenna connection > Customer specific requirements (e.g. installation of an acoustic

H MLA 8 connection signal generator or activation of an alarm system) can be

implemented with macro programs on request
10 Notes concerning software operation
Please contact your Häfele sales representative when using the
Dialock software. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Notes concerning macro programs
Macro programs must be specified in advance. An MDU 110 data
Locks transfer unit and instruction by a Dialock technician is required for
programming. Please contact your Häfele sales representative for
more detailed information.

FC 10.102 www.hafele.com/us
