Locks and Catches
Mains-Operated Furniture Locks

Electric Furniture Lock

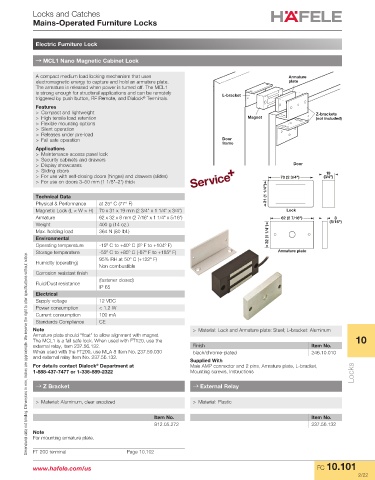

→ MCL1 Nano Magnetic Cabinet Lock

A compact medium load locking mechanism that uses Armature
electromagnetic energy to capture and hold an armature plate. plate
The armature is released when power is turned off. The MCL1
is strong enough for structural applications and can be remotely
triggered by push button, RF Remote, and Dialock Terminals. L-bracket
®
Features
> Compact and lightweight Z-brackets
> High tensile load retention Magnet (not included)
> Flexible mounting options
> Silent operation
> Releases under pre-load
> Fail safe operation Door
frame
Applications
> Maintenance access panel lock
> Security cabinets and drawers
> Display showcases Door
> Sliding doors
19
> For use with self-closing doors (hinges) and drawers (slides) 70 (2 3/4") (3/4")
> For use on doors 3–50 mm (1 1/8"–2") thick
31 (1 1/4")
Technical Data
Physical & Performance at 25° C (77° F)
Magnetic Lock (L × W × H) 70 x 31 x 19 mm (2 3/4" x 1 1/4" x 3/4") Lock
Armature 62 x 32 x 8 mm (2 7/16" x 1 1/4" x 5/16") 62 (2 7/16") 8
Weight 400 g (14 oz.) (5/16")
Max. holding load 364 N (80 lbf.)
Environmental 32 (1 1/4")
Operating temperature -15º C to +40º C (5º F to +104º F)
Storage temperature -55º C to +85º C (-67º F to +185º F) Armature plate
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
95% RH at 50º C (+122º F)
Humidity (operating)
Non combustible
Corrosion resistant finish
(fastener closed)
Fluid/Dust resistance
IP 65
Electrical
Supply voltage 12 VDC
Power consumption < 1.2 W
Current consumption 100 mA
Standards Compliance CE
Note > Material: Lock and Armature plate: Steel; L-bracket: Aluminum
Armature plate should “float" to allow alignment with magnet.
The MCL1 is a fail safe lock. When used with FT120, use the 10
external relay, item 237.56.132. Finish Item No.
When used with the FT200, use MLA 8 Item No. 237.59.030 black/chrome-plated 246.10.010
and external relay Item No. 237.56.132.
Supplied With
For details contact Dialock Department at Male AMP connector and 2 pins, Armature plate, L-bracket,
®
1-888-437-7477 or 1-336-889-2322 Mounting screws, Instructions Locks
→ Z Bracket → External Relay

> Material: Aluminum, clear anodized > Material: Plastic

Item No. Item No.
912.05.272 237.56.132
Note
For mounting armature plate.

FT 200 terminal Page 10.102

www.hafele.com/us FC 10.101
